OPS PC-GF Series 30/42mm
1.Plug-in OPS Design – Hot-swappable 80Pin gold finger interface, perfectly compatible with interactive smart whiteboards, easy installation & maintenance.
2.Dual Size Options – 195×180×30mm / 195×180×42mm compact aluminum alloy chassis, shockproof and pressure resistant, net weight only 1KG.
3.Efficient Low-Noise Cooling – 16mm height radiator + honeycomb heat dissipation holes, stable continuous operation at -10℃~60℃ for 24/7 commercial use.
4.Rich Full-Featured Interfaces – HDMI, VGA, Gigabit LAN, 3×USB3.0+2×USB2.0, audio jack, built-in 2.4G/5G WiFi & Bluetooth for flexible connectivity.
5.Fully Customizable – Support customization on CPU, RAM, storage, OS, logo and package, ideal for education, meeting room, industrial & medical display projects.
Product Description
This OPS pluggable computer is specially designed for all-in-one interactive smart whiteboards, widely deployed in corporate offices, government control rooms, education training, conference seminars, industrial automation, self-service terminals and smart medical scenarios. Hot-swappable OPS structure, compact aluminum alloy casing, rich ports and reliable cooling system to deliver stable performance for long-time non-stop operation
| Model | OPS PC GM Series |
CPU | Support Intel ® 4th generation core mobile CPU |
Chipset | HM87/HM86 Intel HD graphics 4600 |
RAM | Single channel SO-DIMM DDR3，1333/1600MHz |
Maximum To 8GB(4G*2,8G*1) | |
SSD/HDD | 1×Msata |
1×M.2-2280 SATA | |
Structure Dimension （L×W×T） | 195mm×180mm×30/42mm |
Application Scenarios
Perfectly fit multiple industries:
✅ Corporate Office
✅ Government System Control Center
✅ Education & Classroom Training
✅ Conference & Seminar Room
✅ Industrial Automation Control
✅ Automation Self-service Terminal
✅ Smart Medical Display
Core Advantages

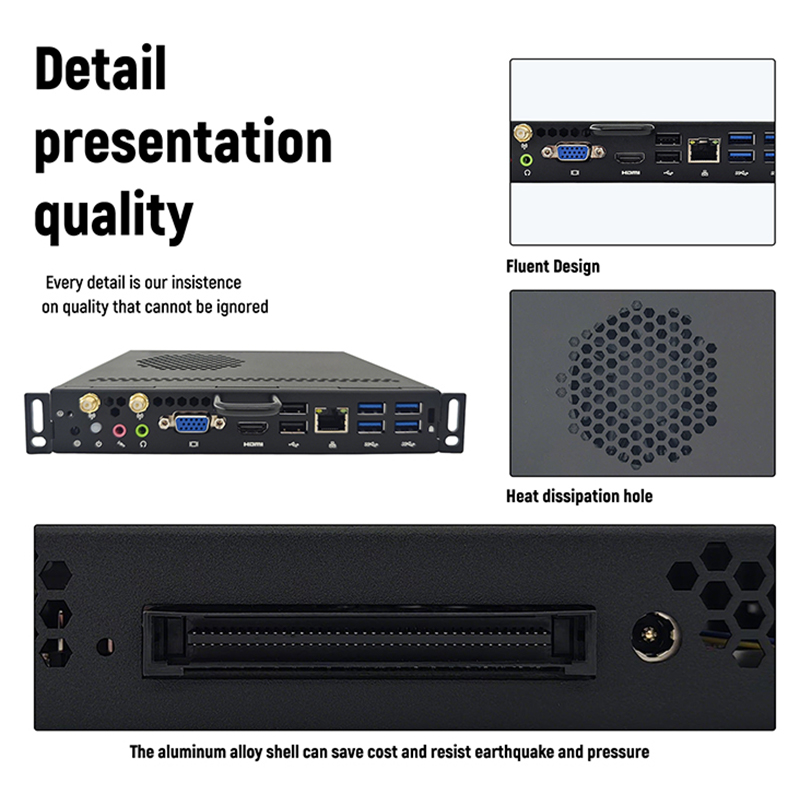

✅ Efficient Cooling System
Adopts 16mm high radiator, optimized honeycomb heat dissipation holes on aluminum shell. High-speed running with low noise, ensures stable operation under long continuous working hours, working temperature range: -10℃ ~ 60℃.

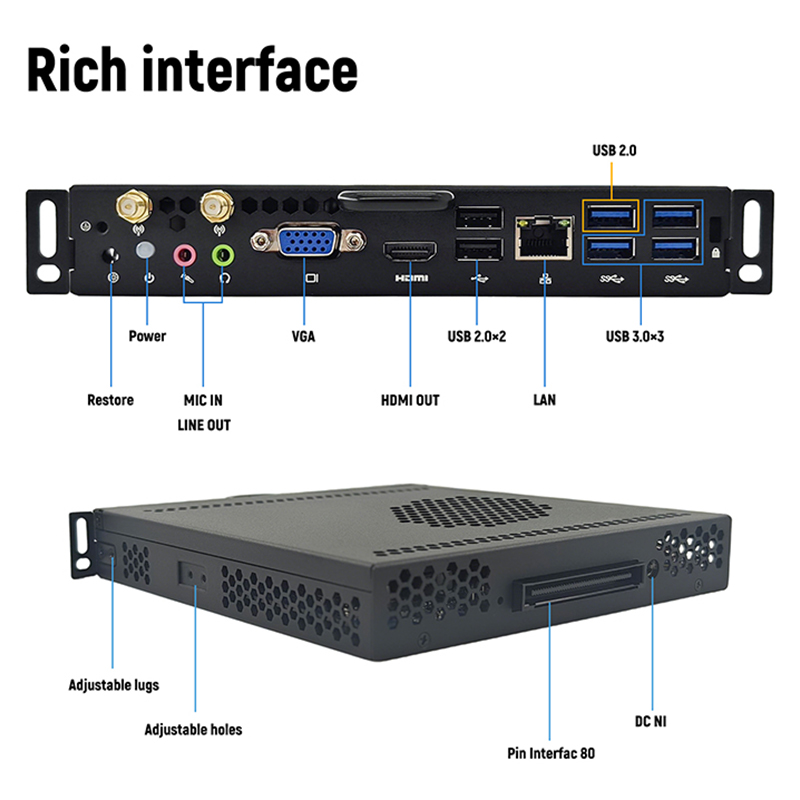

✅ Abundant Interfaces
Comprehensive rear I/O ports to meet diverse connection demands:
· 1×HDMI (up to 3840×2160@30Hz)
· 1×VGA (up to 1920×1080@60Hz)
· 3×USB3.0 + 2×USB2.0
· 1×RJ45 Gigabit LAN
· MIC IN & LINE OUT audio jack
· 80Pin OPS gold finger interface
· DC 12-19V power input Built-in M.2 2230 2.4G/5G WIFI + Bluetooth module for wireless connection.

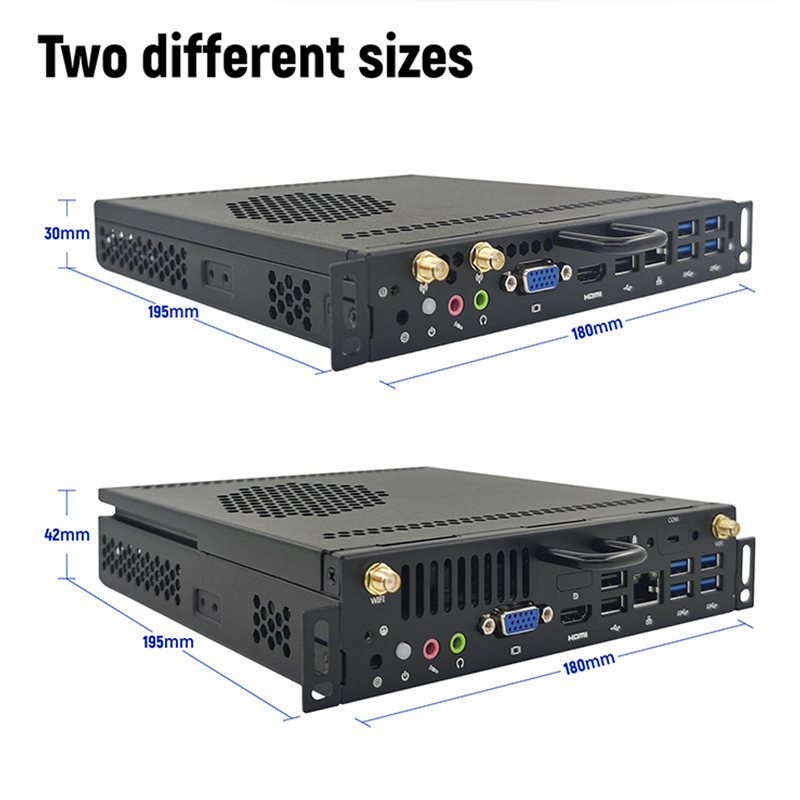

✅ Two Optional Sizes
· Version 1: 195×180×30mm
· Version 2: 195×180×42mm
Lightweight design, net weight only 1KG, gross weight 1.5KG.
Aluminum alloy housing, shockproof & pressure-resistant, durable for commercial & industrial use.
✅ Fully Customizable Service
We support customized configurations for your project: Size / Motherboard / CPU / RAM / SSD / WIFI & BT / Operating System / Packaging Carton / Logo printing and more.
Ending

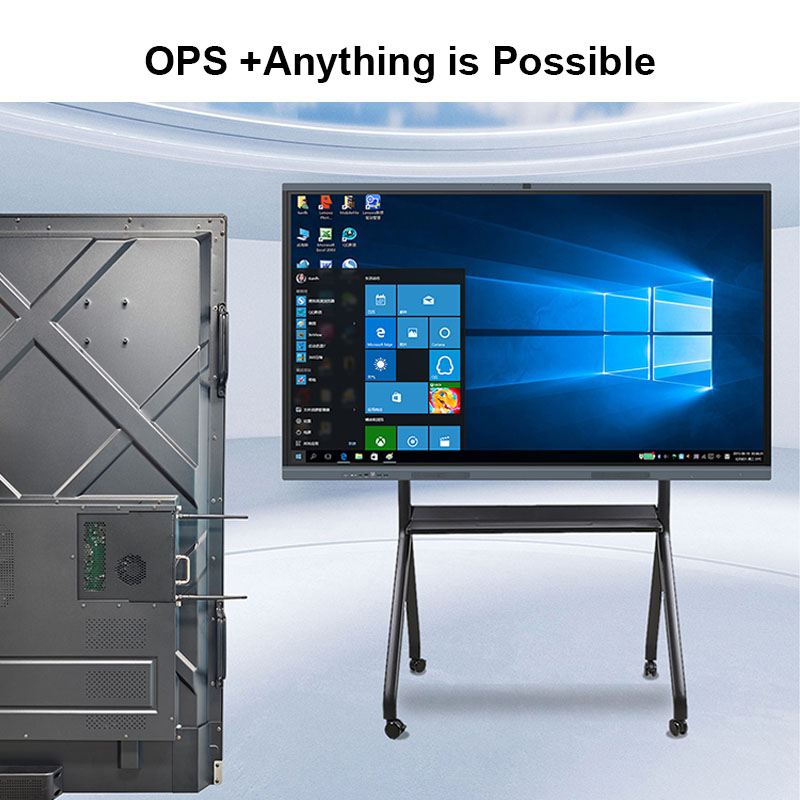

GHOT OPS + Anything is Possible Plug and play, easy maintenance, no complicated wiring. Our OPS PC module is the ideal computing core for interactive touch whiteboards, meeting all commercial display & smart display project requirements.
