OPS PC-GP Series 30/42mm
12th Gen Intel Alder Lake‑U/H CPU options; HDMI & DP both support 4K@60Hz output.
Dual‑channel DDR4 RAM max up to 64GB. Dual M.2‑2280 slots: NVMe + SATA SSD for flexible storage expansion.
Asia‑size dimension:195×180×30 mm / 195×180×42 mm, standard 80‑pin hot‑swap OPS interface.

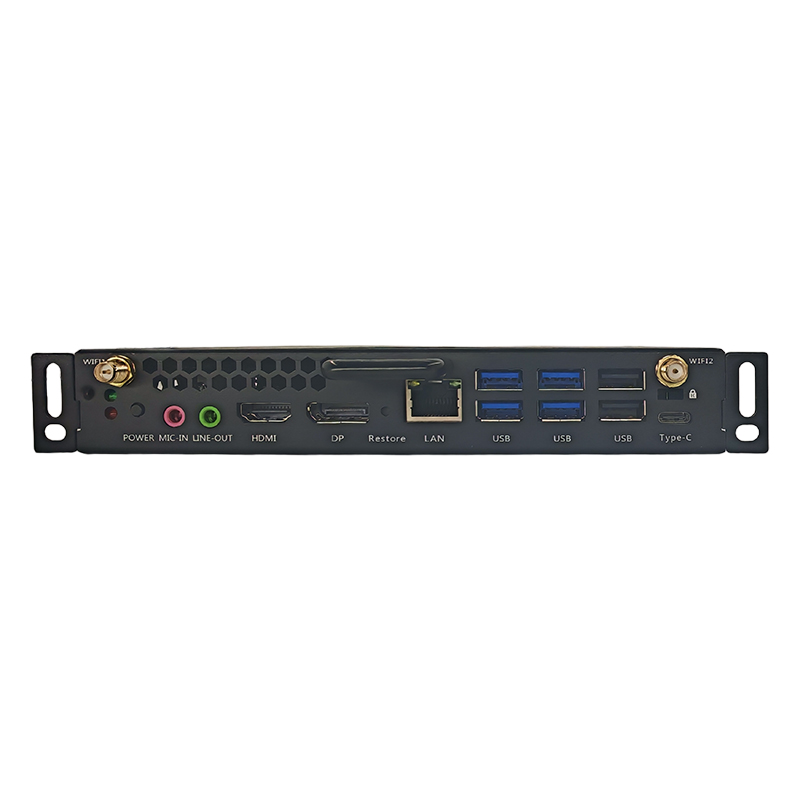

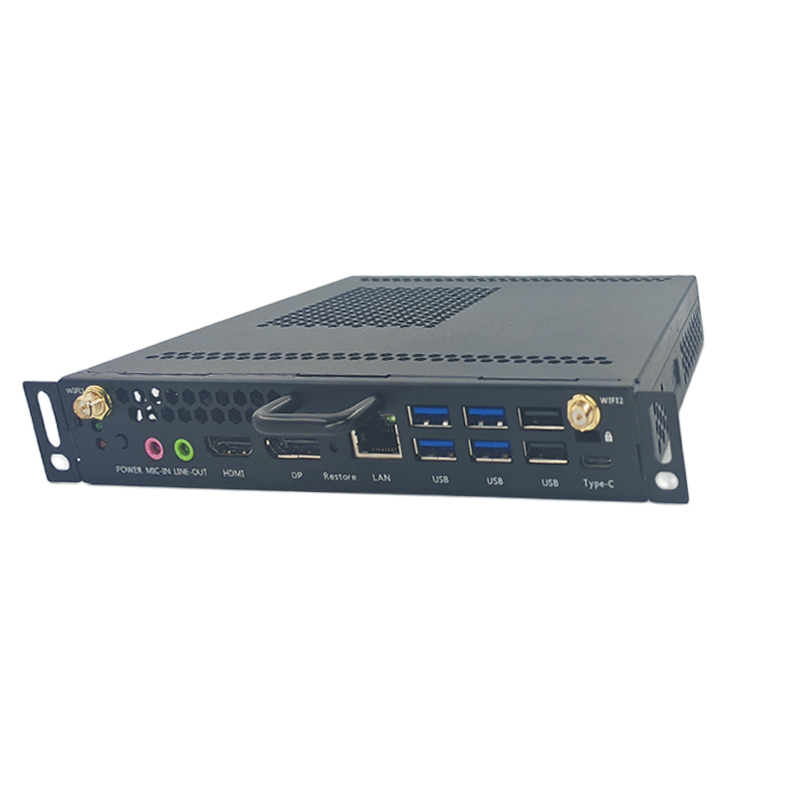

Full I/O: Type‑C, 3×USB3.0+3×USB2.0, Gigabit LAN, audio jacks, dual‑band external antennas.
Support watchdog, power‑on boot, remote wake‑up and hardware monitoring for centralized management.
Wide DC input 12‑19V; Operating temperature:‑10℃~50℃.
Product Description

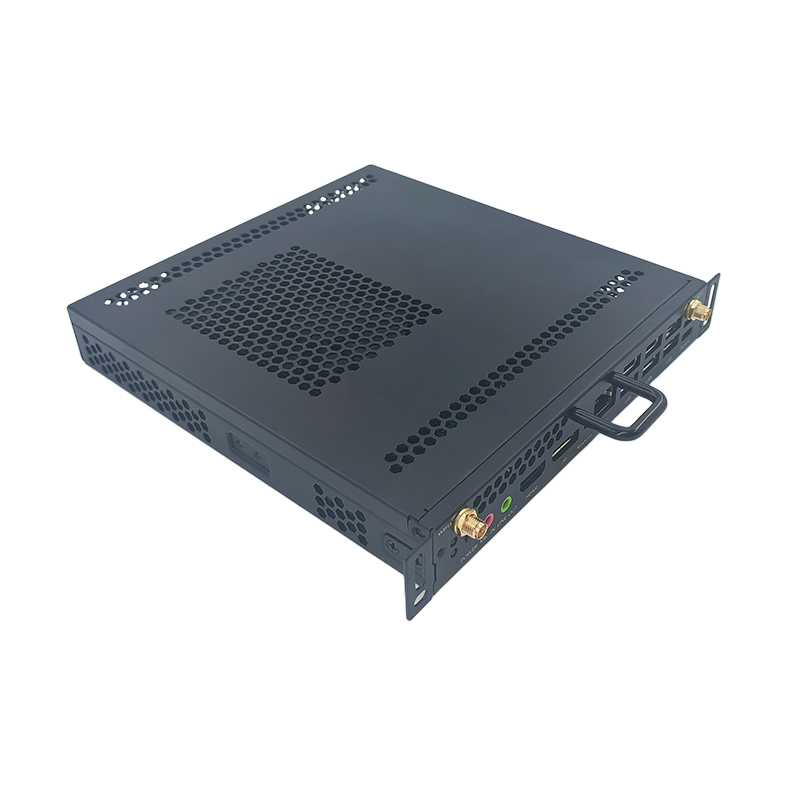

GHOT GP‑Series(12th Gen.) Asia‑size is hot‑pluggable OPS computing module with standard 80‑pin OPS gold‑finger connector for interactive smart whiteboards and commercial displays. Powered by 12th‑Gen Intel Alder Lake‑U/H SOC CPU with Intel UHD Graphics. It features dual M.2‑2280 storage slots, comprehensive I/O ports and optional WiFi5/WiFi6+BT. Supports Windows 10/11 OS, quick‑swap and stable 24/7 continuous operation for Asia‑region education, meeting and digital‑signage projects.
Model | GP Series |
CPU | Support Intel ® 12th generation core mobile CPU |
Chipset | SOC |
RAM | Dual Channel DDR4 2666/3200MHz, 2×260-Pin DDR4 SODIMM |
Maximum To 64GB | |
SSD | 1×M.2 2280 NVMe Protocols |
1×M.2 2280 SATA Protocols | |
USB | 3×USB3.0,3×USB2.0 |
| Windows | Windows 10/11 |
Power Supply | TRNF DC IN, Input Voltage 12V~19V |
Operation | Temperature：-10℃~50℃；Humidity：10%~90%RH |
Storage | Temperature：-20℃~60℃；Humidity：0%~90%RH |
Structure Dimension | 120mm×180mm×30mm |
Application Scenarios
Perfectly fit multiple industries:
✅ Corporate Office
✅ Government System Control Center
✅ Education & Classroom Training
✅ Conference & Seminar Room
✅ Industrial Automation Control
✅ Automation Self-service Terminal
✅ Smart Medical Display
Fully Customizable Service
We support customized configurations for your project: Size / Motherboard / CPU / RAM / SSD / WIFI & BT / Operating System / Packaging Carton / Logo printing and more.
Ending
GHOT OPS + Anything is Possible Plug and play, easy maintenance, no complicated wiring. Our OPS PC module is the ideal computing core for interactive touch whiteboards, meeting all commercial display & smart display project requirements.
