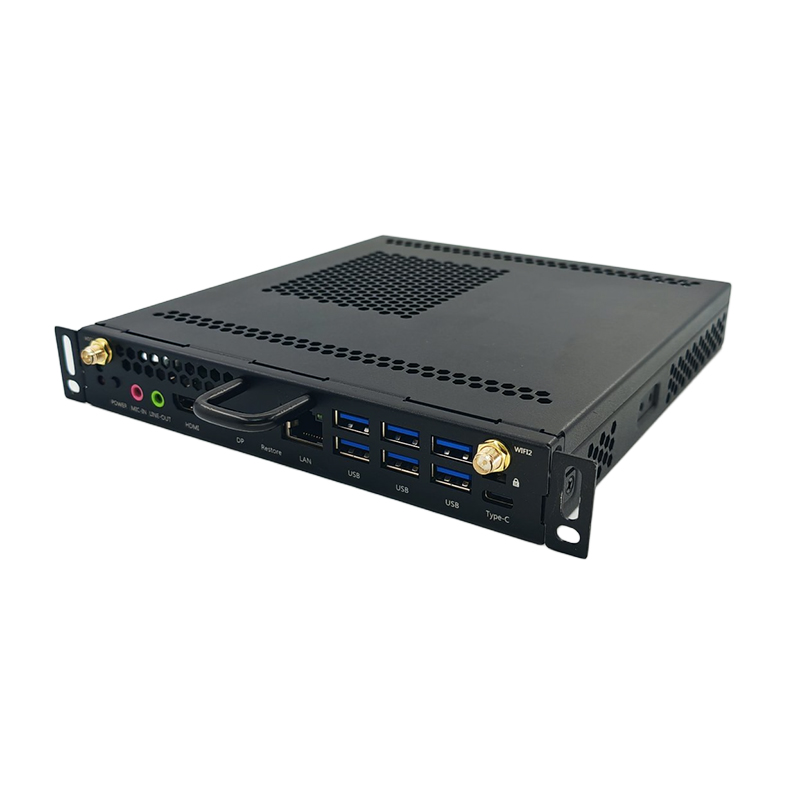

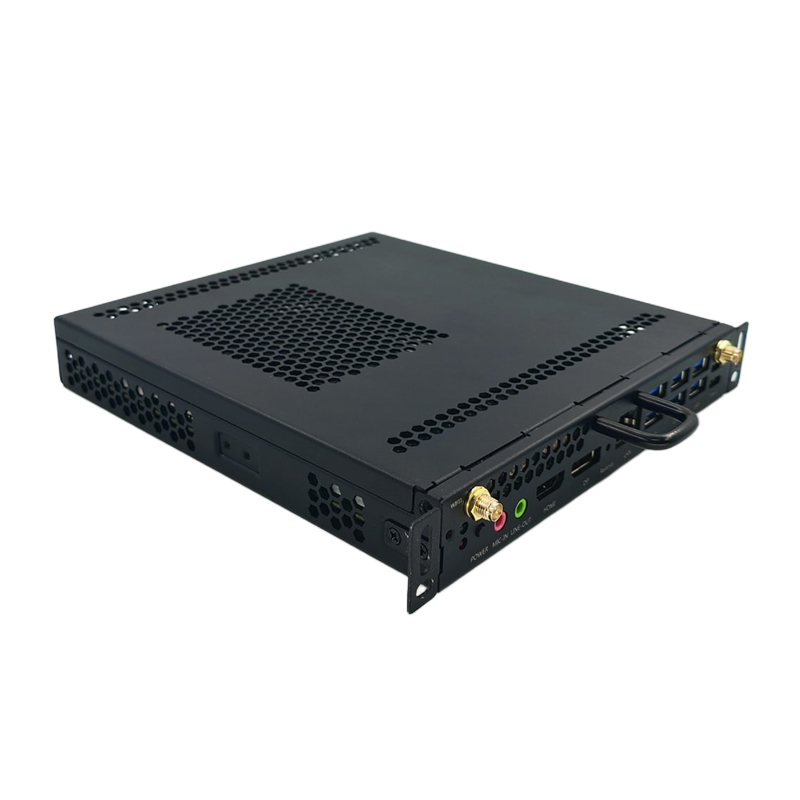

OPS PC-GX Series 30/42mm
14th Gen Intel Raptor Lake‑HX CPU ; HDMI & DP output up to 4K@60Hz.
Dual‑channel DDR4 RAM max up to 64GB. Dual M.2‑2280 slots for NVMe and SATA SSD for flexible storage expansion.

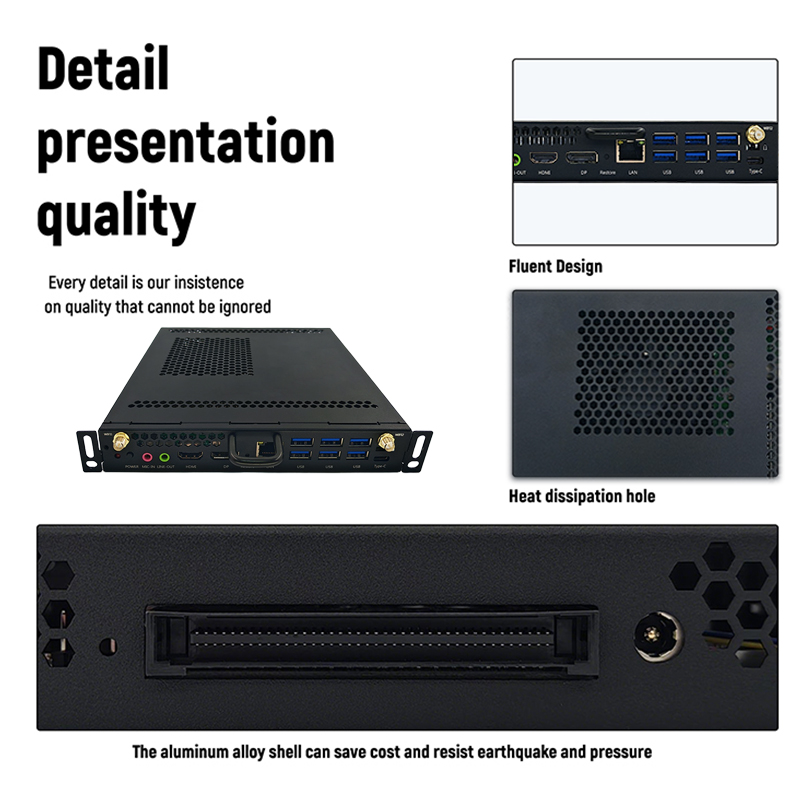

Asia‑size dimension:195×180×30 mm / 195×180×42 mm, standard 80‑pin hot‑swap OPS interface.

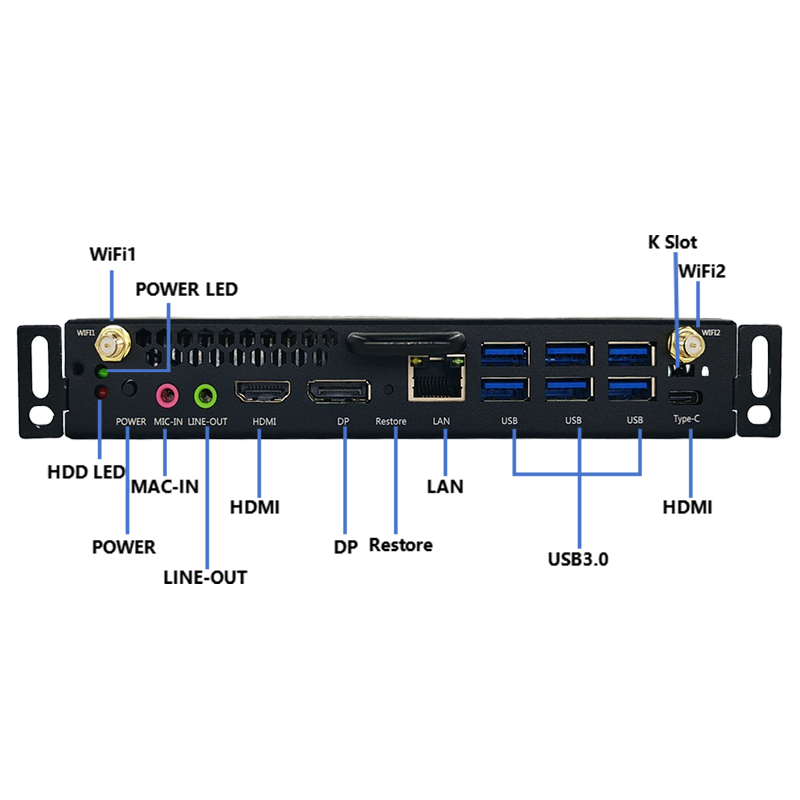

Rich I/O: 6×USB3.0 + Type‑C, Gigabit LAN, audio jacks, dual‑band external antennas.
Support watchdog, power‑on boot, remote wake‑up and hardware monitoring for centralized device management.
Wide DC input 12‑19V; Operating temperature:‑10℃~50℃.
Product Description

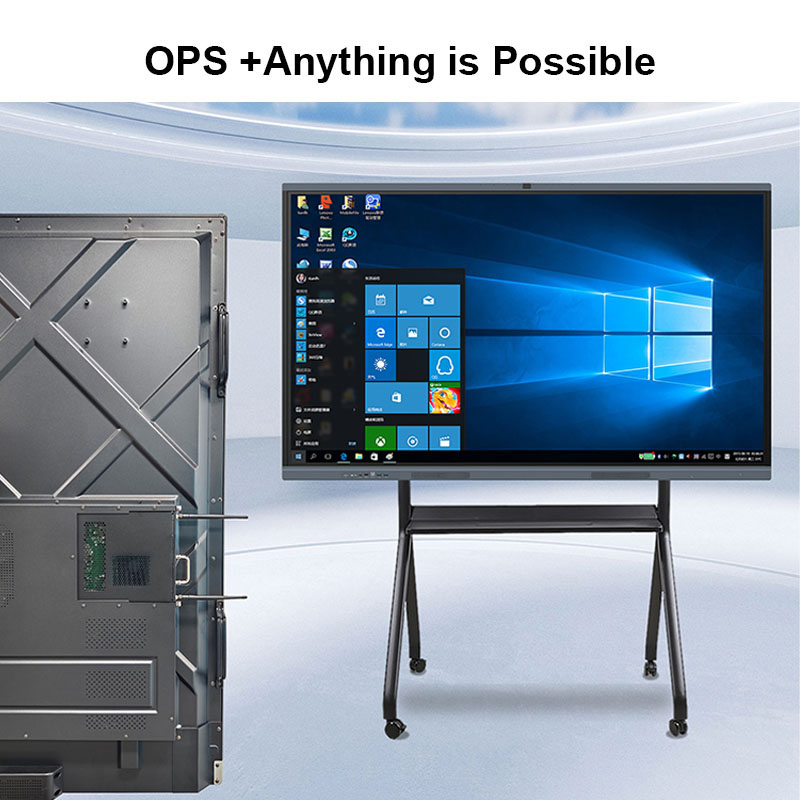

GX‑Series(14th Gen.) Asia‑size is hot‑pluggable OPS computing module built with standard 80‑pin OPS gold‑finger connector for interactive smart whiteboards and commercial displays. Powered by 14th‑Gen Intel Raptor Lake‑HX CPU with Intel UHD Graphics. Equipped with dual M.2‑2280 storage slots, six USB3.0 ports and optional WiFi5/WiFi6+BT module. Supports Windows 10/11 OS, quick module replacement and reliable 24/7 continuous operation for high‑performance education, conference and digital‑signage projects in Asia‑Pacific region.
Model | GHOT GX Series |
CPU | Support Intel ® 14th generation core mobile CPU |
| RAM | Dual Channel DDR4 2666/3200MHz, 2×260-Pin DDR4 SODIMM |
Maximum To 64GB | |
SSD | 1×M.2 2280 NVMe Protocols |
1×M.2 2280 SATA Protocols | |
Graphics | Intel® UHD Graphics |
USB | 6×USB3.0 |
| Antenna | 2×2.4G/5G Dual antenna |
| WLAN | 1×M.2 2230 2.4G/5G/6G+BT（Wifi5、Wifi6 optional） |
80Pin OPS Interface | 1×HDMI（Max. support resolution ratio 3840x2160@60Hz） |
1×USB3.0 | |
2×USB2.0 | |
12V~19V | |
Windows | Windows 10/11 |
Power Supply | TRNF DC IN, Input Voltage 12V~19V |
Operation | Temperature：-10℃~50℃；Humidity：10%~90%RH |
Storage | Temperature：-20℃~60℃；Humidity：0%~90%RH |
Structure Dimension （L×W×T） | 195mm×180mm×30mm 195mm×180mm×42mm |
Application Scenarios
Tailored for diverse commercial‑grade deployment scenarios across global markets:
✅ Smart Classroom & Educational Training
✅ Enterprise Meeting & Collaborative Conference Room
✅ Corporate Office & Enterprise Branch Workstations
✅ Government Control Room & Public Information Release
✅ Digital Signage & Commercial Interactive Displays
✅ Industrial On‑site Control & Automation Terminals
✅ Self‑service Kiosk & Smart Medical Display Solutions
Fully Customizable Service
We deliver project‑oriented customization to match your unique requirements: Mechanical size, motherboard configuration, CPU selection, RAM & SSD capacity, WiFi/Bluetooth module, operating system pre‑installation, silk‑screen logo, custom packaging and more. Both small‑batch prototype and large‑volume order are supported.
Ending
Designed for hot‑swap deployment, GHOT OPS PC modules simplify on‑site installation and routine maintenance without complicated cabling. Featuring 24/7 stable performance, rich I/O expansion and centralized manageability, our OPS computing modules serve as the reliable embedded computing core for interactive whiteboards and all kinds of smart commercial display projects worldwide.
